C# AD(Active Directory)域信息同步，組織單位、用戶等信息查詢 接上篇 Windows Server 2008 R2 配置AD(Active Directory)域控制器 對AD

C# AD(Active Directory)域信息同步，組織單位、用戶等信息查詢 接上篇 Windows Server 2008 R2 配置AD(Active Directory)域控制器 對AD 域結合常見需求用

C#進行一些讀取信息的操作^_^!

?

?

?

?

? 示例準備 知識了解 讀取AD 域信息示例 DirectorySearcher.Filter 屬性擴充說明 用戶屬性擴充說明(含圖文屬性對照)

?

?

?

?

?

?

常規 地址

帳戶 電話 組織 示例下載

新建層次關系如下：

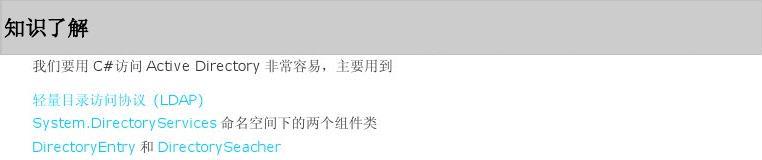

下面我們開始連接域，并讀取出示例準備中鍵好的組織單位和用戶 首先編寫代碼用

LDAP 嘗試對域進行訪問

形式：LDAP://Domain

#region## 是否連接到域

///

/// 域名或IP

/// 用戶名

/// 密碼

/// 域

///

private bool IsConnected(string domainName, string userName, string userPwd, out DirectoryEntry domain)

{

domain = new DirectoryEntry();

try

{

domain.Path = string.Format("LDAP://{0}", domainName);

domain.Username = userName;

domain.Password = userPwd;

domain.AuthenticationType = AuthenticationTypes.Secure;

domain.RefreshCache();

return true;

}

catch(Exception ex)

{

LogRecord.WriteLog("[IsConnected方法]錯誤信息：" ex.Message);

return false;

}

} #endregion

傳用參數，調IsConnected 方法，結果如下

連接上AD 域后，接著我們找到根OU

#region## 域中是否存在組織單位

///

///

///

///

private bool IsExistOU(DirectoryEntry entry, out DirectoryEntry ou)

{

ou = new DirectoryEntry();

try

{

ou = entry.Children.Find("OU=" txtRootOU.Text.Trim());

return (ou != null);

}

catch(Exception ex)

{

LogRecord.WriteLog("[IsExistOU方法]錯誤信息：" ex.Message);

return false;

}

} #endregion

傳入以數，調用IsExistOU 方法，結果如下

下面來開始讀取組織單位及用戶的信息。

示例為了看出層次關系及導出信息是類型區分，給OU 和User 新建了一個實體類和一個類型的枚舉

#region## 類型

///

public enum TypeEnum : int

{

///

OU = 1,

///

USER = 2 }

#endregion

#region## Ad域信息實體

///

public class AdModel

{

public AdModel(string id, string name, int typeId, string parentId) {

Id = id;

Name = name;

TypeId = typeId;

ParentId = parentId;

}

public string Id { get; set; }

public string Name { get; set; }

public int TypeId { get; set; }

public string ParentId { get; set; }

}

#endregion

下面讀取信息

private List list = new List();

#region## 同步

///

///

public void SyncAll(DirectoryEntry entryOU)

{

DirectorySearcher mySearcher = new DirectorySearcher(entryOU, "(objectclass=organizationalUnit)"); //查詢組織單位

DirectoryEntry root = mySearcher.SearchRoot; //查找根OU

SyncRootOU(root);

StringBuilder sb = new StringBuilder();

sb.Append("rnIDt帳號t類型t父IDrn");

foreach (var item in list)

{

sb.AppendFormat("{0}t{1}t{2}t{3}rn", item.Id, item.Name, item.TypeId, item.ParentId);

}

LogRecord.WriteLog(sb.ToString());

MessageBox.Show("同步成功", this.Text, MessageBoxButtons.OK,

MessageBoxIcon.Information);

Application.Exit();

}

#endregion

#region## 同步根組織單位

///

///

private void SyncRootOU(DirectoryEntry entry)

{

if (entry.Properties.Contains("ou") &&

entry.Properties.Contains("objectGUID"))

{

string rootOuName = entry.Properties["ou"][0].ToString();

byte[] bGUID = entry.Properties["objectGUID"][0] as byte[];

string id = BitConverter.ToString(bGUID);

list.Add(new AdModel(id, rootOuName, (int)TypeEnum.OU, "0"));

SyncSubOU(entry, id);

}

}

#endregion

#region## 同步下屬組織單位及下屬用戶

///

///

///

private void SyncSubOU(DirectoryEntry entry, string parentId)

{

foreach (DirectoryEntry subEntry in entry.Children)

{

string entrySchemaClsName = subEntry.SchemaClassName;

string[] arr = subEntry.Name.Split('=');

string categoryStr = arr[0];

string nameStr = arr[1];

string id = string.Empty;

if (subEntry.Properties.Contains("objectGUID")) //SID

{

byte[] bGUID = subEntry.Properties["objectGUID"][0] as byte[];

id = BitConverter.ToString(bGUID);

}

bool isExist = list.Exists(d => d.Id == id);

switch (entrySchemaClsName)

{

case "organizationalUnit":

if (!isExist)

{

list.Add(new AdModel(id, nameStr, (int)TypeEnum.OU, parentId)); }

SyncSubOU(subEntry, id);

break;

case "user":

string accountName = string.Empty;

if (subEntry.Properties.Contains("samaccountName"))

{

accountName =

subEntry.Properties["samaccountName"][0].ToString();

}

if (!isExist)

{

list.Add(new AdModel(id, accountName, (int)TypeEnum.USER,

parentId));

}

break;

}

}

}

#endregion

調用SyncAll 方法循環輸出list, 結果如下, 很清楚的可以看出層次關系

//ID 帳號 類型 父ID

//58-D6-C4-32-6A-A1-99-48-A4-8B-C8-5D-BC-C9-3E-17 acompany 1 0 //FB-44-91-AE-AC-73-2B-4D-9F-01-B1-E2-16-D3-CB-1B department01 1 58-D6-C4-32-6A-A1-99-48-A4-8B-C8-5D-BC-C9-3E-17

//47-9D-5B-91-60-22-D1-46-B0-CD-C7-B2-C7-D3-00-31 department03 1 FB-44-91-AE-AC-73-2B-4D-9F-01-B1-E2-16-D3-CB-1B

//E3-AD-47-45-38-64-02-4D-B9-83-2C-50-67-50-4F-92 zw 2 47-9D-5B-91-60-22-D1-46-B0-CD-C7-B2-C7-D3-00-31

//8A-D4-23-18-F3-6F-E1-47-93-7A-CC-07-76-4B-E7-86 zhongw 2 FB-44-91-AE-AC-73-2B-4D-9F-01-B1-E2-16-D3-CB-1B

//BC-D0-34-85-67-2F-05-4D-B5-77-E3-F4-AD-51-45-02 department02 1 58-D6-C4-32-6A-A1-99-48-A4-8B-C8-5D-BC-C9-3E-17

//1C-13-FA-66-E4-51-65-49-8B-DC-22-60-32-34-8F-22 wilson 2 BC-D0-34-85-67-2F-05-4D-B5-77-E3-F4-AD-51-45-02

//84-E8-E5-9A-6B-56-E2-45-9A-87-54-D1-78-6B-D3-56 porschev 2 58-D6-C4-32-6A-A1-99-48-A4-8B-C8-5D-BC-C9-3E-17

常項選項卡
